The fire alarm control panel is an important part of the fire alarm system. It is mainly used to receive, display and transmit fire alarm signals, and has the function of issuing control signals.
The main functions of the fire alarm control panel are system power supplying, fire alarm signal receiving, and equipment linkage.
1.System Power Supplying
The fire alarm control panel can provide a stable power supply for external devices such as smoke detectors. Meanwhile, it can also monitor the working status of external devices and the system itself.
2.Fire Alarm Signal Receiving
The fire alarm control panel can receive, convert, and process the fire alarm signal output from the detectors, giving sound and light alarms, indicating the specific location and time of the fire alarm, and recording the alarm information.
3.Equipment Linkage
The fire alarm control panel can activate the fire alarm signal through the fire alarm sending device or activate the automatic fire extinguishing equipment and linkage control equipment through the automatic fire extinguishing control device.
Addressable fire alarm system AW-FP300 Features：
The AW-FP300 single loop 32 zone fire alarm control panel offers the following features:
1. Up to 324 addresses on one loop
2. An easy to read, 4.3'' color screen LCD with a resolution of 480×272
3. Zone indication and control panel(ZCP) for 32 zones gives a quick indication of the location of an alarm
4. Record capacity of 1000 historical events for each of historical fire, historical fault and historical operation
5. An independently programmable conventional sounder circuit output
6. Integral power supply and battery

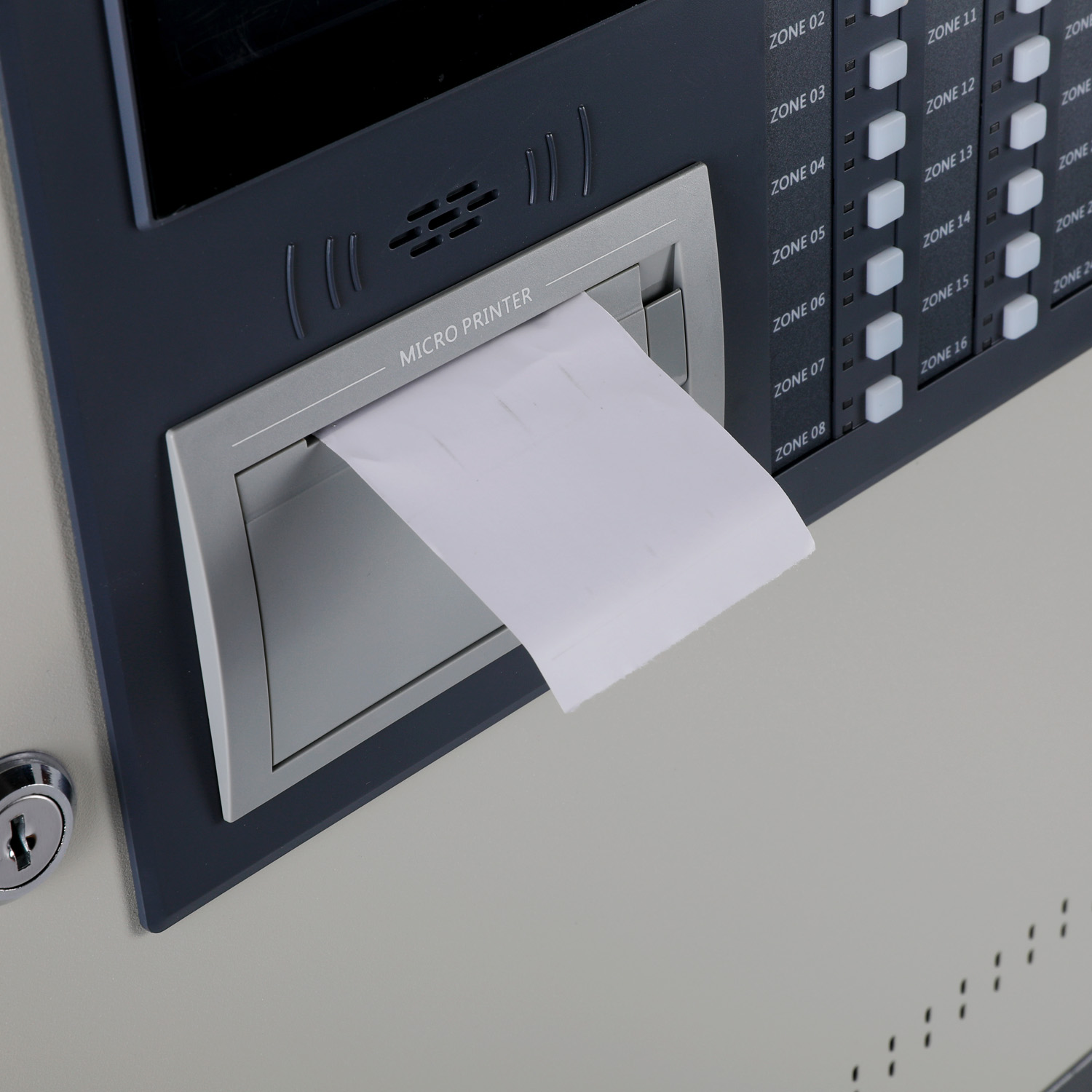

7. Integral printer
8. Flexible and intuitive cause and effect programming on front panel
9. Zone test, point test and module start/stop testing facilitate the commissioning
10. U-disk interface makes the load and save of configuration or historical data convenient for system commissioning and maintenance
11. Hierarchy management with three access levels
12. Anti-tamper protection by a key lock
13. CAN bus for interconnection of up to 20 FACPs and RS485 for connection with up to 30 fire indicating panels per FACP
